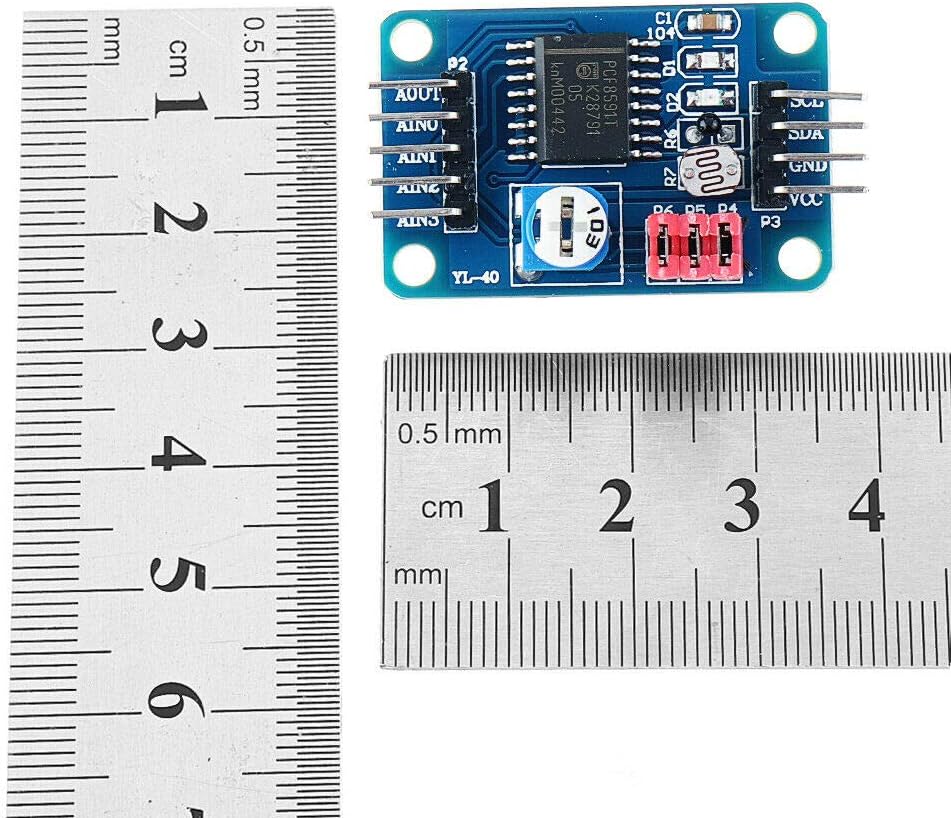

Electronic Components 3pcs PCF8591 AD/DA Converter Module Analog to Digital to Analog Conversion for A

Product Description:Feature: Single-Supply OperationPCF8591 operating voltage range of 2.5V to 6VLow standby currentthrough the I2C bus serial input / outputPCF8591 by 3 hardware address pins addressingSampling rate PCF8591 I2C bus rate decided4 analog inputs programmable as single-ended or differential inputsAutomatic incremental channel selectionPCF8591 analog voltage range from VSS to VDDPCF8591 built-in track and hold circuit8-bit successive approximation A / D converterthrough an analog output DAC gain Description: 1. A module chip using PCF89512. module supports external voltage input capture (input voltage range 0-5v)3. Three modules integrated photoresistor acquisition environment through the AD intensity accurate numerical4. modules integrated thermistor, can capture the precise value of the ambient temperature through the AD5. The five-module integrated 1 channel 0-5V voltage input acquisition (blue potentiometer to adjust the input voltage)6. modules with power indicator light (on the module after power indicator lights)7. modules with the DA output indicator light board DA output indicator module DA output interface voltage reaches a certain value, the voltage the greater the light brightness is more obvious;8. module PCB size: 3.6cm * 2.3cm9. standard double-sided, plate thickness 1.6mm, the layout is nice, surrounded by the through-hole, aperture: 3mm, convenient fixed Interface: The module's left and right, respectively, the external expansion of 2-way pin interface, respectively, as follows:The output interface of the left the AOUT chip DAThe AINO chip analog input interface.AIN1 chip analog input interfaceAIN2 chip analog input interfaceAIN3 chip analog input interfaceThe right side of the SCL IIC clock interface to access the microcontroller IO portThe SDA IIC digital interface connected microcontroller IO portGND module to an externalVCC power supply interface external 3.3v-5v Module red jumper instructions for
